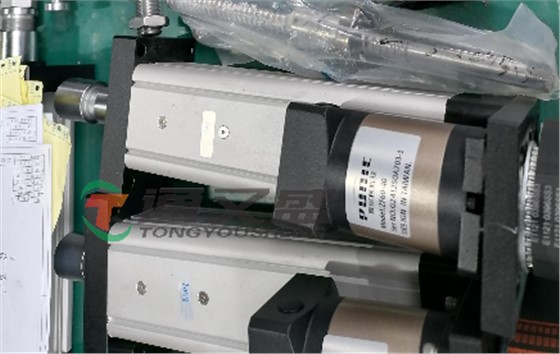

When a fault occurs during the operation of a servo retractable electric cylinder, we can inspect its mechanical components to troubleshoot the cause.
Mechanical components are the executive parts that enable the linear motion of the servo retractable electric cylinder, and their operating conditions directly affect its performance. When inspecting these components, focus on the following aspects:
Inspection of Installation Status
Improper installation of the servo retractable electric cylinder may cause excessive friction and resistance during operation, thereby affecting performance.
- Check if the installation is secure and all mounting bolts are tightened to prevent loosening during operation.
- Inspect the clearance and fit of guiding devices, such as whether the gap between the guide rail and slider is appropriate and if the guide shaft and bushing are well-matched.
Proper clearance and fit ensure smooth operation and reduce wear. An overly small clearance increases friction, making operation difficult, while an overly large clearance compromises positioning accuracy. Always follow the installation manual strictly to ensure quality.
Inspection of Motor and Transmission Components
Transmission components between the motor and the cylinder convert rotational motion into linear motion. Loose or damaged components can lead to inefficient power transmission and operational issues.
- Verify that the tightening torque of transmission components meets specifications (e.g., check for loose coupling bolts or improper timing belt tension).
- Examine components for signs of wear, deformation, or fractures. Replace any damaged parts promptly.
Example: A servo retractable electric cylinder experiencing abnormal vibration and noise during frequent starts/stops was found to have a worn coupling elastic element. Replacing the element restored smooth operation.
Load Inspection
Excessive load is a common cause of faults. Overloading can strain the cylinder, damage the motor or transmission parts, and even lead to operational failure.
-
Re-evaluate the load to ensure it falls within the cylinder’s rated capacity. If the load is too high, consider upgrading to a larger cylinder or optimizing load distribution.
-
Check for load jams or obstructions during motion, as these can also impede normal operation.
By systematically inspecting these mechanical aspects, most servo retractable electric cylinder faults can be identified and resolved efficiently. Regular maintenance and proactive checks are key to ensuring long-term reliability and performance.
